RightMark Audio Analyzer test report
| Testing device | Primärer Soundtreiber |
| Sampling mode | 24-bit, 192 kHz |
| Interface | DirectSound |
| Testing chain | External loopback (line-out - line-in) |
| RMAA Version | 6.4.0 |
| 20 Hz - 20 kHz filter | ON |
| Normalize amplitude | ON |
| Level change | -2.0 dB / -2.0 dB |
| Mono mode | OFF |
| Calibration singal, Hz | 1000 |
| Polarity | correct/correct |
Summary
| Frequency response (from 40 Hz to 15 kHz), dB | +0.01, -0.06 | Excellent |
| Noise level, dB (A) | -99.0 | Excellent |
| Dynamic range, dB (A) | 99.0 | Excellent |
| THD, % | 0.0019 | Excellent |
| THD + Noise, dB (A) | -88.2 | Good |
| IMD + Noise, % | 0.0046 | Excellent |
| Stereo crosstalk, dB | -91.8 | Excellent |
| IMD at 10 kHz, % | 0.0046 | Excellent |
| General performance | Very good |
Frequency response
Left | Right | |
| From 20 Hz to 20 kHz, dB | -0.23, +0.01 | -0.26, -0.03 |
| From 40 Hz to 15 kHz, dB | -0.06, +0.01 | -0.09, -0.03 |
Noise level
Left | Right | |
| RMS power, dB | -98.8 | -98.2 |
| RMS power (A-weighted), dB | -99.1 | -98.9 |
| Peak level, dB FS | -68.8 | -68.9 |
| DC offset, % | +0.0 | -0.0 |
Dynamic range
Left | Right | |
| Dynamic range, dB | +98.8 | +98.7 |
| Dynamic range (A-weighted), dB | +99.1 | +98.9 |
| DC offset, % | -0.00 | -0.00 |
THD + Noise (at -3 dB FS)
Left | Right | |
| THD, % | +0.0020 | +0.0018 |
| THD + Noise, % | +0.0041 | +0.0040 |
| THD + Noise (A-weighted), % | +0.0040 | +0.0038 |
Intermodulation distortion
Left | Right | |
| IMD + Noise, % | +0.0047 | +0.0045 |
| IMD + Noise (A-weighted), % | +0.0040 | +0.0041 |
Stereo crosstalk
Left | Right | |
| Crosstalk at 100 Hz, dB | -83 | -84 |
| Crosstalk at 1000 Hz, dB | -90 | -92 |
| Crosstalk at 10000 Hz, dB | -83 | -84 |

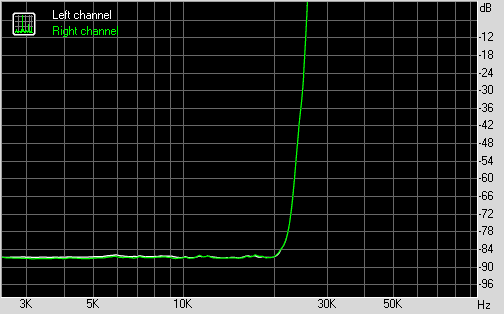

IMD (swept tones)
Left | Right | |
| IMD + Noise at 5000 Hz, | 0.0047 | 0.0045 |
| IMD + Noise at 10000 Hz, | 0.0047 | 0.0046 |
| IMD + Noise at 15000 Hz, | 0.0046 | 0.0045 |
